Our company performs design services, production, installation and automation of the distillation/rectification unit and heat-transfer equipment according to customer's technical requirements.

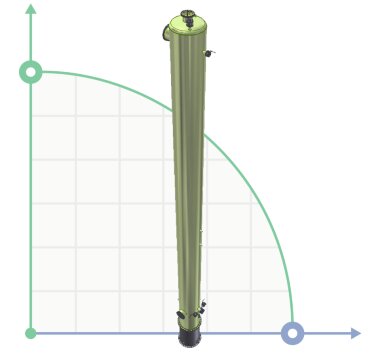

Column of the final clearance (methanolic ) is tergeted for improvement of organoleptic indicators of rectified alcohol for complete extraction of end, neuter admixtures from it. It can work under atmospheric, overpressure or under vacuum.
We can produce both standard and non-standard equipment for all branches of industry according to customer's design documentation or according to the documentation developed by our company based on customer's technical specification and according to the new construction technologies.

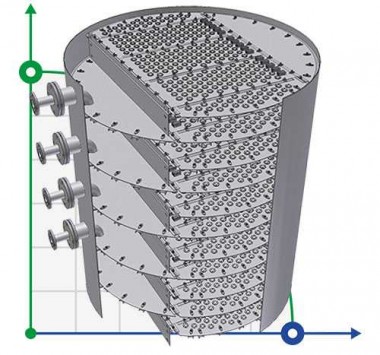

| Designation of the columns | Diameter of the column, mm | Type of the plate | Quantity of plates, pcs. | Plate spacing, mm | Provisional column height, mm | Provisional column mass, kg |
| М04-600/0,17/30 B | 600 | multicap plate | 30 | 170 | 6800 | 1460 |
| М04-600/0,17/30 V | valve plate | 6800 | 1170 | |||
| М04-700/0,17/30 V | 700 | 6900 | 1480 | |||
| М04-700/0,17/30 B | multicap plate | 6900 | 1850 | |||
| М04-800/0,17/30 B | 800 | 7000 | 2365 | |||
| М04-800/0,17/30 V | valve plate | 7000 | 1895 | |||
| М04-900/0,17/30 V | 900 | 7100 | 2300 | |||
| М04-900/0,17/30 B | multicap plate | 7100 | 2870 | |||
| М04-1200/0,17/30 B | 1200 | 7400 | 5250 | |||
| М04-1200/0,17/30 V | valve plate | 7400 | 4160 |
