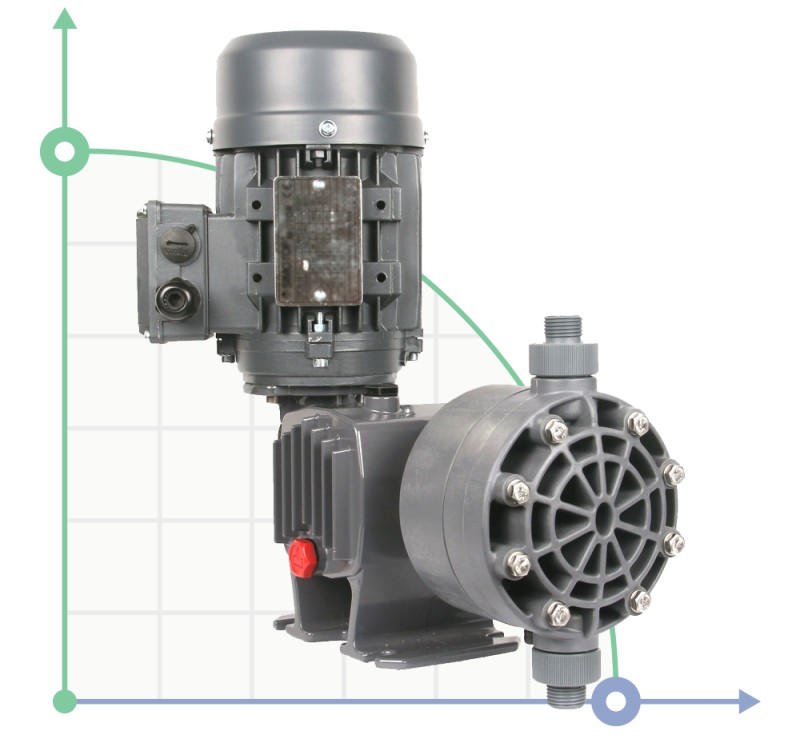

Diaphragm dosing pump PDM-D CA 16/14 400/3/50 0,18
Products from the same category
Description
Motor diaphragm dosing pumps of the ST-D Series capacity: 10÷148 L/H. pressure: 5÷14 bar designed for dosing chemicals.
St-D series diaphragm chemical metering pumps in compact design;
Configuration :CA — pump's head— PP (polypropylene), diaphragm — PTFE (Teflon)
Capacity: 10÷148 L / H, pressure: 5÷14 bar;
The pumps comply with CE standards;
The pump body is made of cast aluminum, protected by epoxy, anti-acid paint;
Protection class: IP55, insulation Class: F-S1-IEC 34-1;
The pump capacity is regulated by a micrometer handle that controls the length of the piston stroke;
The dosing pump is controlled by a vertically positioned motor;
The gearbox operates on the principle of idling (the piston is returned using a return spring);
Standard motor: 0.18 kW, 230 / 400V, 3 phase, 50 Hz;
Other types of engines are made on request.
Documentation Diaphragm dosing pump PDM-D CA 16/14 400/3/50 0,18
Download instructions, catalog for Diaphragm dosing pump PDM-D CA 16/14 400/3/50 0,18
