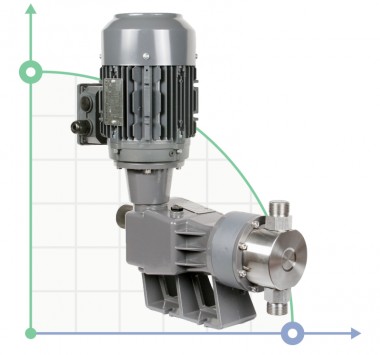

Plunger dosing pump PDM-P AA 83/18 400/3/50 0,37
Products from the same category
Description
High-capacity plunger pumps up to 1027 l/h are designed for dosing chemicals.
P series plunger chemical metering pumps;
Capacity: 14÷1027 L/H, pressure: 3.5÷25 bar;
Configuration AA — pump's head — AISI 316l, plunger — AISI 316L;
The pumps comply with CE standards;
The pump body is made of cast aluminum, protected by epoxy, anti-acid paint;
Protection class: IP55, insulation Class: F;
The pump capacity is regulated by a micrometer handle that controls the length of the piston stroke;
Maximum intake height: 3 meters;
The plunger pump is controlled by a vertically positioned motor;
The gearbox operates on the principle of idling (the piston is returned using a return spring);
Standard motor: 0.25 kW-0.75 kW, 230 / 400V, 3 phase, 50 Hz.;
Other types of engines on request.
Documentation Plunger dosing pump PDM-P AA 83/18 400/3/50 0,37
Download instructions, catalog for Plunger dosing pump PDM-P AA 83/18 400/3/50 0,37
