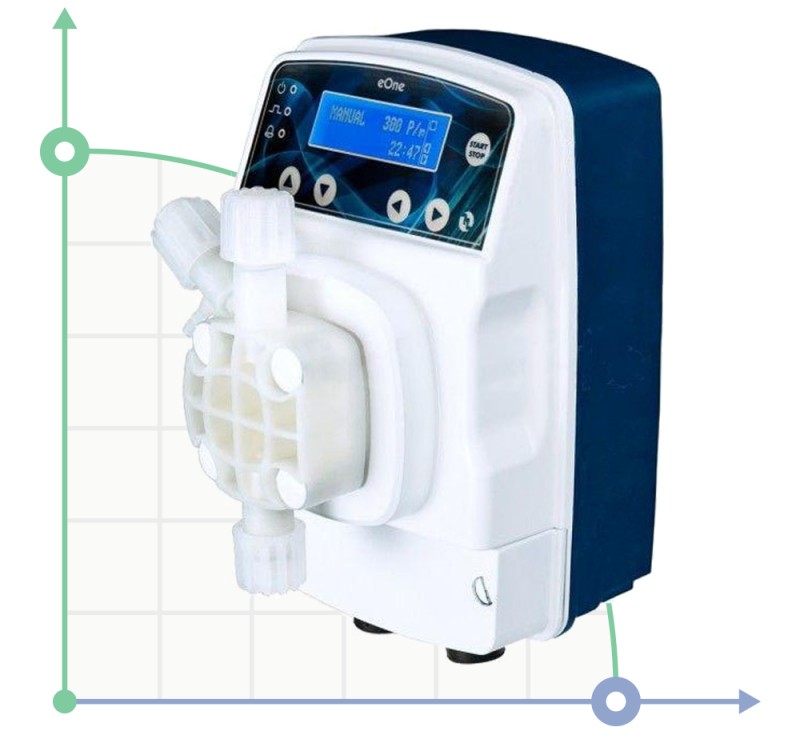

Dosing pump PDE eONE PLUS 06-07 100/250V

Dosing pump PDE eONE PLUS 06-07 100/250V

PEU463934I
Price:
$783.21
PEU463934I

Features Dosing pump PDE eONE PLUS 06-07 100/250V

Producer
ETATRON D.S.
Impulse volume
0,33
Serial number of the pump
eONE
Material
PVDF
Pump body material
PVDF
Power supply
1х220 V, 50 Hz
PumpType
dosing solenoid
Drive Type
electric
Weight, kg
3,5
Number of pulses
300
All features

Description

Digital multi-function proportional dosing pump with integrated pH/RedOx/Cl/ppm controller. Backlit liquid crystal display. The maximum pulse frequency is 300 imp/min. A procedure for calibrating a specific pulse for specific needs. Dosage regimens: - Manual ON/OFF - Proportional PROP. Plus all the main modes and functions of the eONE-MF pump (see the description above). Measuring range: 0-14 pH; -1000+1400 mV (RedOx); 0-2, 0-20, 0-200 mg/l (chlorine), 0-2, 0-20, 0-200 ppm (parts per millionth). Setting the pump start-up delay time. Manual (25 ° C by default) or automatic temperature compensation (when connecting the PT100 temperature sensor). MAX alarm system. reagent concentrations. Alarm system MIN. reagent concentrations. Continuous dosing time alarm. The output is 4-20 mA. ON/OFF relay output for alarm system. Support for output flow and level sensors (sensors are not included). Power consumption-26 W (varies depending on
