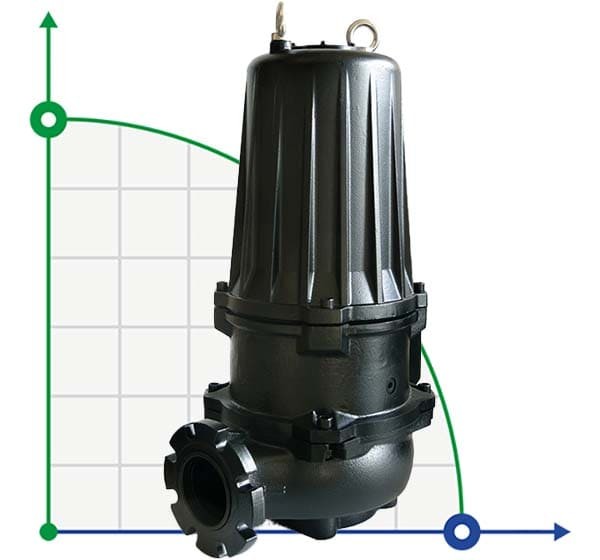

Submersible pump Dreno ATH-EX 100-2/120 with centrifugal two-channel impeller

Submersible pump Dreno ATH-EX 100-2/120 with centrifugal two-channel impeller

Dreno
Brand
2001210EX
Price netto:
$10,192
Ukraine: Pre-order only
Poland: Pre-order only
Germany: Pre-order only
Italy: Pre-order only
2001210EX
We deliver anywhere in the world

Features Submersible pump Dreno ATH-EX 100-2/120 with centrifugal two-channel impeller

Producer
Dreno
Serial number of the pump
ATH
Pump capacity, m3/h
194.4
Feed height, m
34
Power capacity, kW
12
Output pipe diameter
DN100
Max. head, m
34
Max.flow rate, m3/h
194.4
ATEX standard
II 2G Ex db IIB T4 Gb; II 2G Ex h IIB T4 Gb; II 2G 0° Ta 40°
Housing material
Сast iron
All features

Description

Pump application: the ATH 2 pole series is used to move large volumes of clean water or light wastewater with high productivity. Areas of application: water treatment plants, industrial enterprises, airports, hospitals, civil applications and agricultural irrigation. Feature: all main components are made of GG25 cast iron. Two separate mechanical seals (the engine side in the oil chamber, the impeller side in contact with the liquid) and high-quality parts ensure perfect operation and reliability of the product. Motor range: 2-pole short-circuited rotor motor; thermal protection T1 and T2 integrated in the motor winding (connected to a three-pole Contactor on the control panel); Class F insulation (155°C); protection class IP68. Engine cooling: engine cooling is provided by the liquid in which the pump is immersed. Limits of use: maximum permissible liquid temperature: 40°C when the pump is fully submerged; on request, special version (except ATEX) to withstand liquid temperatures up to 60 ° C with the pump fully submerged, maintenance-free S1; maximum immersion depth: 20 m; permissible pH value: 6-10; hydraulic characteristics suitable for liquids with a density <1.1 kg / DM3; permissible voltage: 380V ±5%; permissible frequency: 50 Hz ±2%. Symbols: T-3 phase 380V EX-in explosion-proof design 2850 rpm./ min. - 2 poles 50 Hz Horizontal pressure pipe

Documentation Submersible pump Dreno ATH-EX 100-2/120 with centrifugal two-channel impeller

Download instructions, catalog for Submersible pump Dreno ATH-EX 100-2/120 with centrifugal two-channel impeller
