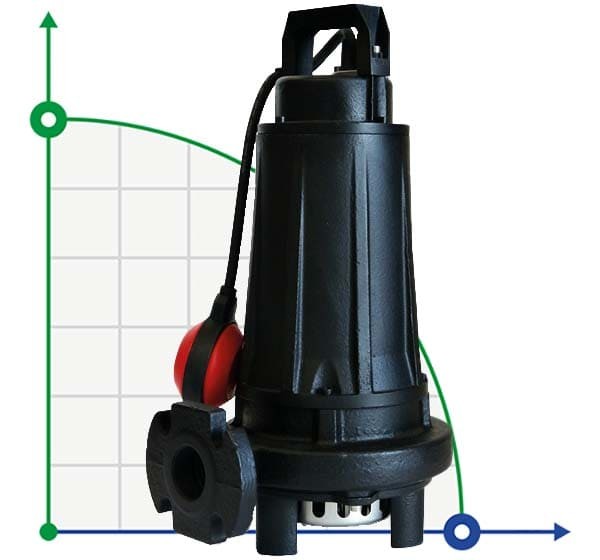

Dreno APX 32-2 / 090 T submersible pump with two-channel impeller
Products from the same category
$1,492.93
Pre-order only
$1,376.08
Pre-order only
Description
Pump application: the APX series is used for pumping clean water or light wastewater where high pressure is required. This series is particularly suitable for pumping water for fountains, water parks, agricultural irrigation and agriculture.
Feature: the main components are made of cast iron GG20 configuration has a cuff seal installed on the engine side and a mechanical seal in the oil chamber on the impeller side.
Motor range: 2-pole short-circuited rotor motor; thermal protection integrated in the winding; insulation Class F 155°C; motor protection class IP68.
Engine cooling: the engine is cooled by the liquid in which the pump is immersed.
Limits of use: maximum permissible liquid temperature: + 40° when the pump is fully submerged; maximum immersion depth: 20 m; permissible pH value: 6-10; hydraulic characteristics suitable for liquids with a density <1.1 kg / DM3; permissible voltage: 220v/380V ±5%; permissible frequency: 50 Hz ±2%.
Symbols:
G-float
M-1 Phase 220V
T-3 phase 380V
M / G-single-phase with float sensor
T/G-three-phase with float sensor
2850 rpm./ min. - 2 poles 50 Hz
Horizontal pressure pipe
Documentation Dreno APX 32-2 / 090 T submersible pump with two-channel impeller
Download instructions, catalog for Dreno APX 32-2 / 090 T submersible pump with two-channel impeller
