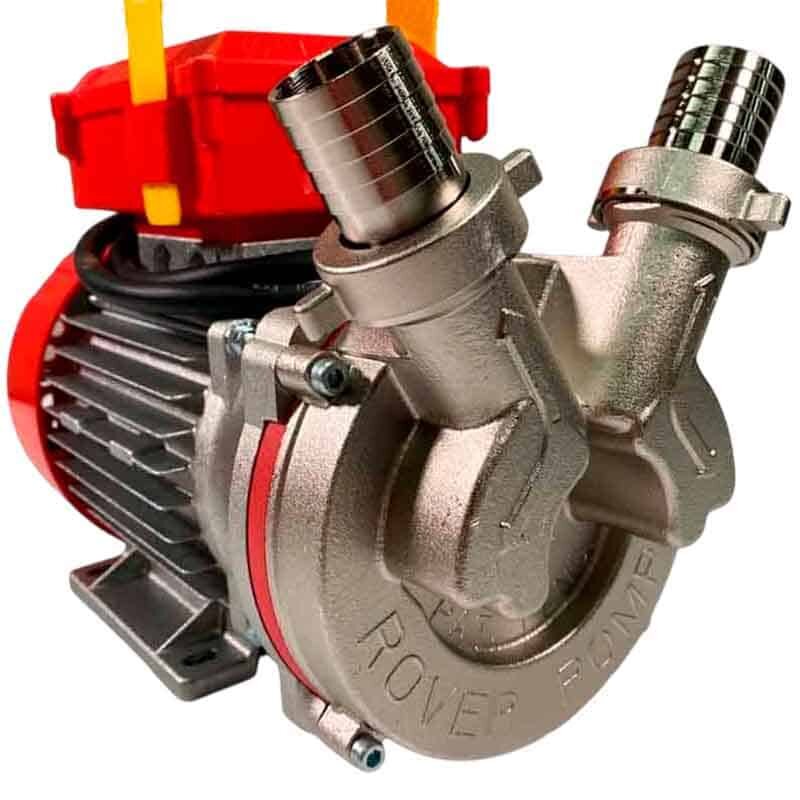

NOVAX 30 T pump for milk, juice, beer
Products from the same category
Description
Application: pump for juice, milk, whey, pumping wine, wine material, beer, wort, syrup, water, emulsion and oil.
Self-priming liquid ring pump with a star-shaped impeller, equipped as standard with a double direction of rotation and a high-efficiency motor designed for continuous operation. The special hydraulic geometry allows the pump to operate even in the presence of air bubbles in the intake fluid. It is manufactured using our special NOVAX ™ technology, thanks to which all surfaces are treated specifically for temporary contact with food liquids, providing greater chemical and wear resistance.
The liquid ring pump provides suction capacity by simply filling the pump body through one of the hose holders. the suction power is active in both directions of rotation.
The pump can be used to pump any type of ordinary liquid that does not need to be chemically aggressive or abrasive. Some examples: water, wine, milk, vinegar, low-viscosity oil solutions, neutral liquid detergents, diesel fuel. The viscosity of the liquid should not exceed 4 sP for continuous operation with free flow and should not exceed 20 sP for periodic operation with free flow and the presence of an operator for observation.
Maintenance: Normal maintenance requires a small number of simple interventions, as if it were a normal household appliance. After use, drain clean water to flush the inner surfaces of the pump. The electric motor does not require maintenance, there are no parts for lubrication. The outer parts must be cleaned with a slightly damp sponge, and then immediately dried with a cloth.
Documentation NOVAX 30 T pump for milk, juice, beer
Download instructions, catalog for NOVAX 30 T pump for milk, juice, beer
