    Shell and tube recuperative heat exchanger for distillation column W1.101+W1.102, 160m2+50m2
    Shell and tube recuperative heat exchanger for distillation column W1.101+W1.102, 160m2+50m2 фото 1 — BTS Engineering
    Shell and tube recuperative heat exchanger for distillation column W1.101+W1.102, 160m2+50m2 фото 1 — BTS Engineering
    Shell and tube recuperative heat exchanger for distillation column W1.101+W1.102, 160m2+50m2 фото 2 — BTS Engineering
    Shell and tube recuperative heat exchanger for distillation column W1.101+W1.102, 160m2+50m2 фото 3 — BTS Engineering

    Shell and tube recuperative heat exchanger for distillation column W1.101+W1.102, 160m2+50m2

    BTS Engineering
    Brand
    BTS Engineering
    1045939
    Price netto:
    $100,677.97
    Ukraine: Pre-order only
    Poland: Pre-order only
    Germany: Pre-order only
    Italy: Pre-order only
    1045939
    - +
    We deliver anywhere in the world

    Features Shell and tube recuperative heat exchanger for distillation column W1.101+W1.102, 160m2+50m2

    Producer
    BTS Engineering
    Material
    AISI 304 stainless steel
    Area, m2
    210
    Analogue for
    ALFA LAVAL, Danfoss, FAMET S.A., FUNKE, GEA, GEA Wigand, RELIZ, SECESPOL, SONDEX, SWEP, Tetra Pak, Vogelbusch, Винпромсервис, Опытно механический завод Винница
    Chemical resistance table
    Vacuum Pumps and Systems Calculator
    Products from the same category
    Shell-and-tube heat exchanger recuperative boiler for heating columns W6.201, 100 m2 — BTS Engineering
    Shell-and-tube heat exchanger recuperative boiler for heating columns W6.201, 100 m2 — BTS Engineering
    1044752
    Shell-and-tube heat exchanger recuperative boiler for heating columns W6.201, 100 m2
    $41,016.95
    In stock

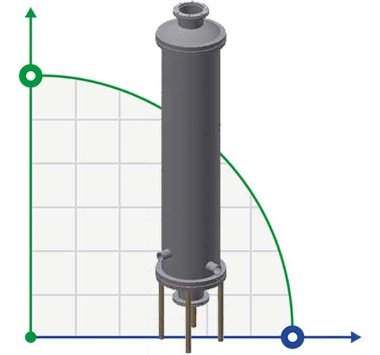

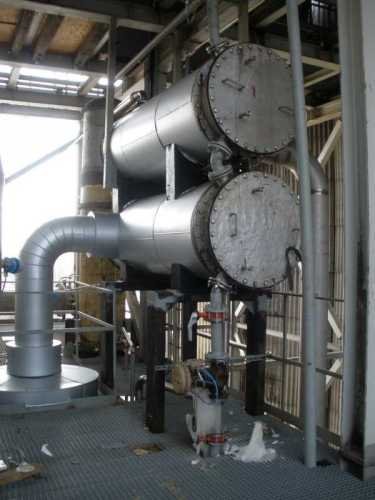

    Shell and tube heat exchanger condenser W6.203, 10 m2 — BTS Engineering
    Shell and tube heat exchanger condenser W6.203, 10 m2 — BTS Engineering
    1044753
    Shell and tube heat exchanger condenser W6.203, 10 m2
    $4,394.68
    In stock

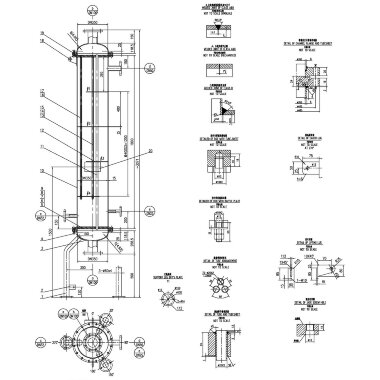

    Shell-and-tube heat exchanger catcher W6.204, 10 m2 — BTS Engineering
    Shell-and-tube heat exchanger catcher W6.204, 10 m2 — BTS Engineering
    1044754
    Shell-and-tube heat exchanger catcher W6.204, 10 m2
    $4,394.68
    In stock
    Shell-and-tube heat exchanger-column boiler 100 m2 — BTS Engineering
    Shell-and-tube heat exchanger-column boiler 100 m2 — BTS Engineering
    1008517
    Shell-and-tube heat exchanger-column boiler 100 m2
    $39,454.41
    Pre-order only

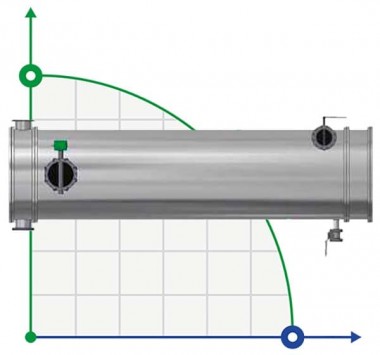

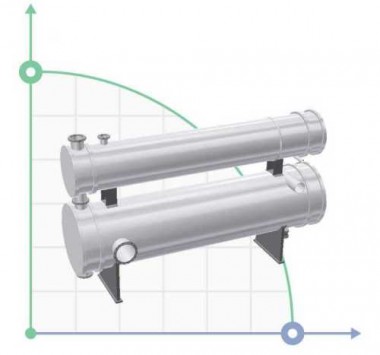

    Condenser -12 m2 — BTS Engineering
    Condenser -12 m2 — BTS Engineering
    1008484
    Condenser -12 m2
    $4,621.55
    Pre-order only
    Boiler of epuration column-22m2 — BTS Engineering
    Boiler of epuration column-22m2 — BTS Engineering
    1008485
    Boiler of epuration column-22m2
    $7,449.71
    Pre-order only

    Description

    W1.101 Design Pressure: Shell side 0.55MPa/Tube side 0.44MPa Design Temperature: Shell side 130C/Tube side 130C Shell DN1000*8mm, S30408 Tube OD32*2*4000mm, 6*72pcs, S30408 Expansion Joint ZD1000-6, S30408 Tube sheet 40mm, S30408 Tube channel Flange 48+3mm, Q345R+S30408 Tube channel Cover 55+3mm, Q345R+S30408 W1.102 Design Pressure: Shell side 1.65MPa/Tube side 0.44MPa Design Temperature: Shell side 190C/Tube side 190C Shell DN650*6mm, S30408 Tube OD32*2*3000mm, 2*90pcs, S30408 Expansion Joint ZD650-5, S30408 Tube sheet 38mm, S30408 Tube channel Flange 36+3mm, Q345R+S30408 Tube channel Front Cover 38+3mm, Q345R+S30408 Tube channel Back Cover 24+3mm, Q345R+S30408
