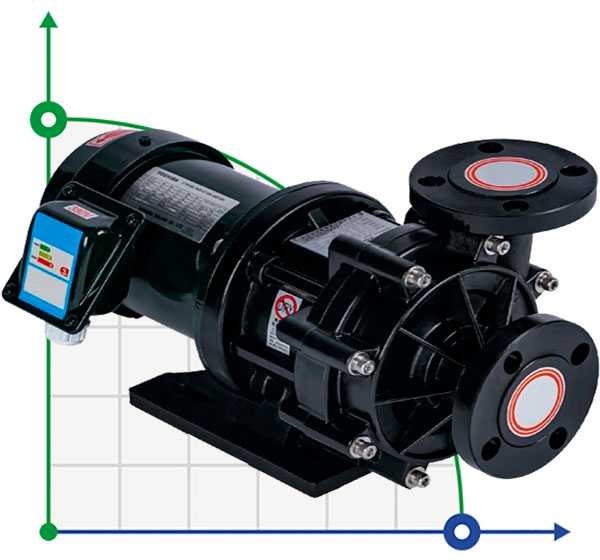

Magnetic coupling pump MP-HX-440 CFRETFE, 240L/min, 12,3m, 380V-TOSHIBA

Magnetic coupling pump MP-HX-440 CFRETFE, 240L/min, 12,3m, 380V-TOSHIBA

Qeehua
Brand
1022557
Price netto:
$1,581.51
Ukraine: In stock
Poland: Pre-order only
Germany: Pre-order only
1022557
We deliver anywhere in the world

Features Magnetic coupling pump MP-HX-440 CFRETFE, 240L/min, 12,3m, 380V-TOSHIBA

Producer
Qeehua
Type of configuration
with engine
Serial number of the pump
MP-HX
Pump capacity, cu.m/hour
14.4
Feed height, m
12.3
Power capacity, kW
0,37
Material
CFRETFE
Input pipe diameter
40
Output pipe diameter
40
Max. head, m
12.3
All features

Description

Reinforced cfretfe fluoropolymer combines high mechanical properties with chemical resistance close to Teflon® fluoropolymers, it is easy to process, has a specific weight of 1.7 and resistance to high radiation energy. Many ETFE brands maintain a continuous use temperature of 150 ° C. ETFE is also available as a mixture of 25% fiberglass, antistatic additives and for adhesion to second polymers (general extrusion). Chemical pump for alkali,acid, filtration, electrolyte, electroplating, hypochloride, nitric acid. Pumps with a magnetic coupling, unlike other chemical pumps, have a significant feature - the design of these pumps does not use an end seal, oil seal or other sealing element of this type. The working body is driven by a magnetic field, the working chamber and the drive shaft are separated by a non-moving casing made of chemically resistant material. This eliminates the possibility of liquid leakage from the working chamber. The magnetic coupling is not afraid of solid particles in the liquid, there is no possibility of leakage, which is not unimportant when pumping chemically active and explosive liquids. Unlike mechanically sealed pumps, pumps equipped with a magnetic coupling do not require maintenance (which saves money and time). Technical specifications: Inlet and outlet pipe: 40x40 mm Engine: TOSHIBA Engine power: 0.37 kW Power supply: 50HZ 3Ø-380V Feed height (max): 12.3 m Capacity (max): 240 l / min Pump analogues: - AGRAL TMB series, TMP, TMR, FLUIMAC CM Series, IWAKI, Finish Thompson Ins, Kaix MDP series, Gemme Cotti HTM series, Crystal XCM Series, M Pumps CM MAG-P series

Documentation Magnetic coupling pump MP-HX-440 CFRETFE, 240L/min, 12,3m, 380V-TOSHIBA

Download instructions, catalog for Magnetic coupling pump MP-HX-440 CFRETFE, 240L/min, 12,3m, 380V-TOSHIBA
