    Acid-resistant pump with magnetic coupling MP-HX-441SSV CFRETFE, 330L/min, 19m, 380V-TOSHIBA
    Acid-resistant pump with magnetic coupling MP-HX-441SSV CFRETFE, 330L/min, 19m, 380V-TOSHIBA фото 1 — BTS Engineering
    Acid-resistant pump with magnetic coupling MP-HX-441SSV CFRETFE, 330L/min, 19m, 380V-TOSHIBA фото 1 — BTS Engineering
    Acid-resistant pump with magnetic coupling MP-HX-441SSV CFRETFE, 330L/min, 19m, 380V-TOSHIBA фото 2 — BTS Engineering
    Acid-resistant pump with magnetic coupling MP-HX-441SSV CFRETFE, 330L/min, 19m, 380V-TOSHIBA фото 3 — BTS Engineering
    Acid-resistant pump with magnetic coupling MP-HX-441SSV CFRETFE, 330L/min, 19m, 380V-TOSHIBA фото 4 — BTS Engineering
    Acid-resistant pump with magnetic coupling MP-HX-441SSV CFRETFE, 330L/min, 19m, 380V-TOSHIBA фото 5 — BTS Engineering
    Acid-resistant pump with magnetic coupling MP-HX-441SSV CFRETFE, 330L/min, 19m, 380V-TOSHIBA фото 6 — BTS Engineering

    Acid-resistant pump with magnetic coupling MP-HX-441SSV CFRETFE, 330L/min, 19m, 380V-TOSHIBA

    Qeehua
    Brand
    Qeehua
    1022559
    Price netto:
    $1,941.58
    Ukraine: Pre-order only
    Poland: Pre-order only
    Germany: Pre-order only
    1022559
    - +
    We deliver anywhere in the world

    Features Acid-resistant pump with magnetic coupling MP-HX-441SSV CFRETFE, 330L/min, 19m, 380V-TOSHIBA

    Producer
    Qeehua
    Type of configuration
    with engine
    Serial number of the pump
    MP-HX
    Pump capacity, cu.m/hour
    19.8
    Feed height, m
    19
    Power capacity, kW
    0,75
    Material
    CFRETFE
    Input pipe diameter
    40
    Output pipe diameter
    40
    Max. head, m
    19
    All features

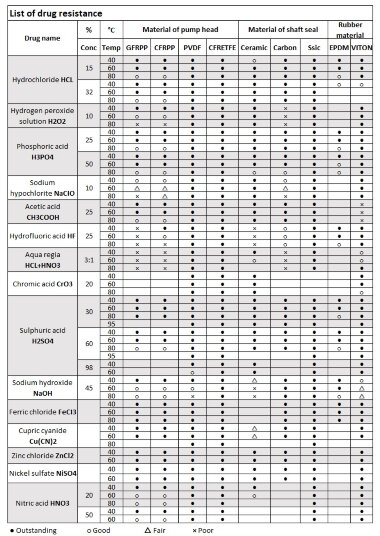

    Chemical resistance table
    Vacuum Pumps and Systems Calculator
    Products from the same category
    PTFE (Teflon) magnetic coupling pump QHX-E-250SSV-5V38AFAA, CFRETFE, 103L/min, 16,1m, 380V — BTS Engineering
    PTFE (Teflon) magnetic coupling pump QHX-E-250SSV-5V38AFAA, CFRETFE, 103L/min, 16,1m, 380V — BTS Engineering
    1022556
    PTFE (Teflon) magnetic coupling pump QHX-E-250SSV-5V38AFAA, CFRETFE, 103L/min, 16,1m, 380V
    $1,577.39
    Pre-order only
    Magnetic coupling pump MP-HX-440 CFRETFE, 240L/min, 12,3m, 380V-TOSHIBA — BTS Engineering
    Magnetic coupling pump MP-HX-440 CFRETFE, 240L/min, 12,3m, 380V-TOSHIBA — BTS Engineering
    1022557
    Magnetic coupling pump MP-HX-440 CFRETFE, 240L/min, 12,3m, 380V-TOSHIBA
    $1,581.51
    In stock
    Pump with magnetic coupling MP-HX-251 CFRETFE, 180L/min, 22M, 380V-TOSHIBA — BTS Engineering
    Pump with magnetic coupling MP-HX-251 CFRETFE, 180L/min, 22M, 380V-TOSHIBA — BTS Engineering
    1022558
    Pump with magnetic coupling MP-HX-251 CFRETFE, 180L/min, 22M, 380V-TOSHIBA
    $1,837.24
    Pre-order only
    Chemical PTFE pump MP-HX-542 CFRETFE, 450L/min, 24,4m, 380V-TOSHIBA — BTS Engineering
    Chemical PTFE pump MP-HX-542 CFRETFE, 450L/min, 24,4m, 380V-TOSHIBA — BTS Engineering
    1022560
    Chemical PTFE pump MP-HX-542 CFRETFE, 450L/min, 24,4m, 380V-TOSHIBA
    $2,570.71
    Pre-order only
    Chemical pump with magnetic coupling QHX-E-543-SSV5, CFRETFE, 563L/min, 25,1m, 380V — BTS Engineering
    Chemical pump with magnetic coupling QHX-E-543-SSV5, CFRETFE, 563L/min, 25,1m, 380V — BTS Engineering
    1022561
    Chemical pump with magnetic coupling QHX-E-543-SSV5, CFRETFE, 563L/min, 25,1m, 380V
    $2,646.37
    Pre-order only

    Description

    Reinforced cfretfe fluoropolymer combines high mechanical properties with chemical resistance close to Teflon® fluoropolymers, it is easy to process, has a specific weight of 1.7 and resistance to high radiation energy. Many ETFE brands maintain a continuous use temperature of 150 ° C. ETFE is also available as a mixture of 25% fiberglass, antistatic additives and for adhesion to second polymers (general extrusion). Chemical pump for alkali,acid, filtration, electrolyte, electroplating, hypochloride, nitric acid. Pumps with a magnetic coupling, unlike other chemical pumps, have a significant feature - the design of these pumps does not use an end seal, oil seal or other sealing element of this type. The working body is driven by a magnetic field, the working chamber and the drive shaft are separated by a non-moving casing made of chemically resistant material. This eliminates the possibility of liquid leakage from the working chamber. The magnetic coupling is not afraid of solid particles in the liquid, there is no possibility of leakage, which is not unimportant when pumping chemically active and explosive liquids. Unlike mechanically sealed pumps, pumps equipped with a magnetic coupling do not require maintenance (which saves money and time). Technical specifications: Inlet and outlet pipe: 40x40 mm Engine: TOSHIBA Engine power: 0.75 kW Power supply: 50HZ 3Ø-380V Feed height (max): 19 m Capacity (max): 330 l / min Pump analogues: - AGRAL TMB series, TMP, TMR, FLUIMAC CM Series, IWAKI, Finish Thompson Ins, Kaix MDP series, Gemme Cotti HTM series, Crystal XCM Series, M Pumps CM MAG-P series

    Documentation Acid-resistant pump with magnetic coupling MP-HX-441SSV CFRETFE, 330L/min, 19m, 380V-TOSHIBA

    Download instructions, catalog for Acid-resistant pump with magnetic coupling MP-HX-441SSV CFRETFE, 330L/min, 19m, 380V-TOSHIBA
